Motorola Solutions

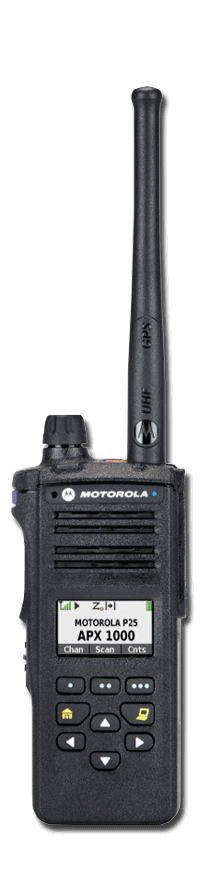

APX 1000

The APX 1000 provides a complete and complementary look and feel to the APX family of P25 TDMA radios. With a two-microphone design to reduce background noise and excellent RF coverage, the APX 1000 is engineered to give you the smallest P25 Phase 2 capable radio on the market today. Engineered with a simplified control top to ensure ease of use, the APX 1000 is the ideal solution for local government and public works users who require quality P25 functionality.

Frequency Band:
700 MHz, 800 MHz, 900 MHz, UHFR2, UHFR1, VHF

Frequency Range:
700/800 (763-776, 793-806, 806-824, 851-870 MHz)
900 (896-901, 935-940 MHz) Two-Knob Model Only
VHF (136-174 MHz)
UHF Range 1 (380-470 MHz)
UHF Range 2 (450-520 MHz)

Power Output:
1-5 Watts Max

Number of Channels/Groups/Zones:
512 Channels

Standard battery chemistry type:
Lithum Ion

Battery life (based on a 5-5-90 duty cycle):
8-10 hours

Battery life - extended (based on a 5-5-90 duty cycle):
10-12 hours

Channel spacing:
6.25 kHz, 12.5 kHz, 25 kHz

Dimensions H x W x D (with standard battery)
5.26" x 2.37" x 1.72"

Weight (without standard battery)
8.22 oz.

Keypad / Keys
MODEL 1.5: Backlight keypad 3 soft keys
MODEL 2:Backlight keypad, 3 soft keys, 4 direction navigation key, Home and Data buttons
MODEL 3:Backlight keypad, 3 soft keys, 4 direction navigation key, 4x3 keypad, Home and Data buttons

Display
Full bitmap color LCD display, 3 lines of text x 14 characters, 1 line of icons, 1 menu line x 3 menus, White backlight

Operating temperature
-30ºC / +60ºC

Mil spec
810 C, 810 D, 810 E, 810 F, 810 G

IP Standards
IP54

Request A Quote


Compact design
Smallest P25 Phase 2 TDMA-capable radio available.

Full-size keypad
Simple to navigate and use.

Color display
High-contrast color display is easy to read in all kinds of light.

Multifunction knob
The multifunction knob is designed for ease of use by combining volume, channel, and ON/OFF settings in one.

Dual microphones
Dual microphone noise suppression technology locates the talker and cancels out any background noise.

AMBE vocoder
Equipped with the latest AMBE +2 digital voice vocoder.

Three radio models
Three radio models allow the user to select the device that best suits the end users environment.

Intelligent lighting
Uses color to notify you of the radio mode, potential emergencies, or specific events. Color alerts provide information at a glance.

Radio profiles
Adjust audio levels, lighting and tones through user selected or automated options. Whether on surveillance or working in bright sunlight, you can customize settings as needed.

Text messaging
Offers a freeform or canned messaging solution so you can efficiently and discreetly send and receive messages.

Voice announcement
Audible, pre-recorded voice file provides a description of the selected channel or zone.

Over-the-air programming
Motorola's POP25 solution allows subscriber radios to be programmed over the air via the ASTRO 25 systems while remaining in the field.

P25 Phase 2 - TDMA
Twice the voice capacity, allowing additional users on the system without the need for additional frequencies or infrastructure.

Brochures

Spec Sheets

Antenna [+]

Motorola NAF5085

NAF5085

700/800 MHz, GPS Whip Antenna
Motorola PMAE4065

PMAE4065

UHF, GPS Whip Antenna
Motorola NAR6593

NAR6593

VHF, GPS Whip Antenna
Motorola NAR6595

NAR6595

1/4 Wave, 700/800 MHz, GPS Stubby Antenna
Motorola FAF5259

FAF5259

UHF Range 1, GPS Stubby Antenna
Motorola FAF5260

FAF5260

UHF Range 2, GPS Stubby Antenna

Batteries [+]

Motorola IMPRES Two-way Batteries

Motorola NNTN8128

NNTN8128

IMPRES Li-ion 2000 mAh Slim, Submersible, Battery-IP67
Motorola NNTN8560

NNTN8560

APX 4000 two knob radio IMPRES Hi-Cap Li-ion 2500 mAh battery Submersible (IP57), Intrinsically Safe (TIA4950)
Motorola PMNN4424

PMNN4424

IMPRES Li-ion 2350 mAh Submersible, Battery-IP67
Motorola PMNN4448

PMNN4448

IMPRES Li-ion 2800 mAh Submersible, Battery-IP67

Carry Accessories [+]

Motorola PMLN6085

PMLN6085

Leather Carry Case with 2.5” Swivel Belt Loop
Motorola PMLN7182

PMLN7182

Carry case for APX 4000 two knob radios
Motorola PMLN7229

PMLN7229

Replacement belt loop for PMLN7182
Motorola PMLN4651

PMLN4651

2” Hard Plastic Belt Clip
Motorola PMLN7008

PMLN7008

2.5” Hard Plastic Belt Clip
Motorola PMLN5407

PMLN5407

Replacement 2.5” Leather Swivel Belt Loop
Motorola PMLN5408

PMLN5408

Replacement 2.75” Leather Swivel Belt Loop
Motorola PMLN5409

PMLN5409

Replacement 3” Leather Swivel Belt Loop

Chargers [+]

Desktop, Single & Multi-unit Chargers

Motorola PMPN4174

PMPN4174

IMPRES Single-Unit Charger, 115V

Motorola PMPN4284

PMPN4284

IMPRES Multi-Unit Charger, 115V

Motorola BR000272A01

BR000272A01

Wall mount bracket for PMPN4284 Charger

Vehicular, Travel Chargers & Vehicular Adapter (VA)

Motorola NNTN7616

NNTN7616

IMPRES Single-Unit Rapid Rate Vehicular Charger
Motorola NNTN8525

NNTN8525

Travel Charger with voltage regulated vehicular charger adapter, custom charger base, mounting bracket, and coil cord

Earpieces [+]

Ear Microphone Systems

Motorola PMLN5653

PMLN5653

IMPRES Ear Microphone with Bone Conduction and programmable button, black
Motorola 0180300E25

0180300E25

Earguard with Adjustable Loop

Surveillance Kits & Earpieces

Motorola PMLN6125

PMLN6125

1-Wire Receive-only earpiece, black
Motorola PMLN6126

PMLN6126

1-Wire Receive-only earpiece, beige
Motorola PMLN6127

PMLN6127

IMPRES 2-Wire Surveillance Kit, programmable button, black
Motorola PMLN6128

PMLN6128

IMPRES 2-Wire Surveillance Kit, programmable button, beige
Motorola PMLN6129

PMLN6129

IMPRES 2-Wire Surveillance Kit with translucent tube, programmable button, black
Motorola PMLN6130

PMLN6130

IMPRES 2-Wire Surveillance Kit with translucent tube, programmable button, beige
Motorola PMLN6123

PMLN6123

IMPRES 3-Wire Surveillance Kit with translucent tube, programmable button, black
Motorola PMLN6124

PMLN6124

IMPRES 3-Wire Surveillance Kit with translucent tube, programmable button, beige
Motorola ZMN6038

ZMN6038

2-Wire Surveillance Kit, with Extra Loud Earpiece, Beige, Hirose Connector.

Requires NNTN7869 Hirose Adapter
Image Not Available

ZMN6039

3-Wire Surveillance Kit, with Extra Loud Earpiece, Beige, Hirose Connector.

Requires NNTN7869 Hirose Adapter
Motorola ZMN6032

ZMN6032

2-Wire Surveillance Kit, Beige, Hirose Connector.

Requires NNTN7869 Hirose Adapter
Motorola ZMN6031

ZMN6031

3-Wire Surveillance Kit, Beige, Hirose Connector.

Requires NNTN7869 Hirose Adapter
Motorola BDN6664

BDN6664

1-Wire Receive-Only Surveillance Kit with Earpiece, Beige, 3.5mm Threaded.

Requires BDN6783
Motorola BDN6726

BDN6726

1-Wire Receive-Only Surveillance Kit with Earpiece, Black, 3.5mm Threaded.

Requires BDN6783.
Image Not Available

BDN6665

1-Wire Receive-Only Surveillance Kit with Extra-Loud Earpiece, Beige, 3.5mm Threaded.

Requires BDN6783.
Motorola BDN6727

BDN6727

1-Wire Receive-Only Surveillance Kit with Extra-Loud Earpiece, Black, 3.5mm Threaded.

Requires BDN6783.
Image Not Available

RLN5314

1-Wire Receive-Only Surveillance Kit with Translucent Tube, Beige, 3.5mm Threaded.

Requires BDN6783
Motorola RLN5313

RLN5313

1-Wire Receive-Only Surveillance Kit with Translucent Tube, Black, 3.5mm Threaded.

Requires BDN6783
Motorola RLN5312

RLN5312

2-Wire Surveillance Kit with Translucent Tube, Black, 3.5mm Threaded.

Requires BDN6783
Image Not Available

BDN6666

1-Wire Receive-Only Surveillance Kit with Volume Control and Earpiece, Beige, 3.5mm Threaded.

Requires BDN6783.
Image Not Available

BDN6728

1-Wire Receive-Only Surveillance Kit with Volume Control and Earpiece, Black, 3.5mm Threaded.

Requires BDN6783.
Motorola BDN6667

BDN6667

2-Wire Surveillance Kit with Earpiece, Beige, 3.5mm Threaded.

Requires BDN6783.
Motorola BDN6669

BDN6669

2-Wire Surveillance Kit with Extra-Loud Earpiece, Beige, 3.5mm Threaded.

Requires BDN6783
Motorola BDN6731

BDN6731

2-Wire Surveillance Kit with Extra-Loud Earpiece, Black, 3.5mm Threaded.

Requires BDN6783.
Motorola BDN6668

BDN6668

3-Wire Surveillance Kit with Earpiece, Beige, 3.5mm Threaded.

Requires BDN6783.
Motorola BDN6730

BDN6730

3-Wire Surveillance Kit with Earpiece, Black, 3.5mm Threaded.

Requires BDN6783.
Motorola BDN6670

BDN6670

3-Wire Surveillance Kit with Extra-Loud Earpiece, Beige, 3.5mm Threaded.

Requires BDN6783.
Motorola BDN6732

BDN6732

3-Wire Surveillance Kit with Extra-Loud Earpiece, Black, 3.5mm Threaded.

Requires BDN6783.

Headsets [+]

Motorola PMLN5101

PMLN5101

IMPRES Temple Transducer with boom microphone and inline push-to-talk 7580384M19 - Replacement rubber temple cover (1 pair)
Motorola PMLN5096

PMLN5096

Earset D-Shell
Motorola PMLN5102

PMLN5102

Ultra Lite Headset
Motorola RMN5058

RMN5058

Lightweight Over-the-Head Headset single muff with in-line push-to-talk and boom mic REX4648 - replacement foam earpad and microphone cover kit
Motorola PMLN5275

PMLN5275

Heavy-Duty Behind-the-Head Headset with Noise-Canceling boom microphone, noise reduction = 24dB

Remote Speaker Mics [+]

Remote Speaker Microphone (RSM)

Motorola PMMN4062

PMMN4062

IMPRES RSM with NON-Threaded Audio Jack, Orange Button, Noise Canceling (IP54)

NOT INTENDED FOR FIRE MARKETS
Motorola PMMN4065

PMMN4065

IMPRES RSM with Volume Toggle Switch, Orange Button and 1-Programmable Button, Windporting (IP57)
Motorola PMMN4069

PMMN4069

IMPRES RSM with NON-Threaded Audio Jack, Windporting (IP55)

Remote Speaker Microphone Accessories and Replacement Parts

Motorola RLN4941

RLN4941

Receive-Only Earpiece with Comfort Eartube, FM approved
Image Not Available

BDN6781

Receive-Only Earpbud, Single Wire, Threaded 3.5 mm connector
Motorola RLN6511

RLN6511
RLN6512
RLN6513

EP7 Sonic Defender, use with RLN4941
Motorola AARLN4885

AARLN4885

Receive-Only Covered Earbud with coiled cord
Motorola RLN4941

RLN4941

Receive-Only Earpiece with translucent tube and rubber eartip
Motorola PMLN4620

PMLN4620

D-Shell Rx-Only Earpiece
Motorola WADN4190

WADN4190

Receive-Only Flexible Earpiece
Motorola RMN5116

RMN5116

Receive and Transmit Boomless Temple Transducer (for HMN4104, HMN4103 and HMN4101 only)
Motorola RLN6424

RLN6424

Receive-Only Earpiece with translucent tube and rubber eartip (for HMN4104, HMN4103 and HMN4101 only)
Motorola PMKN4107

PMKN4107

Display RSM Interface Cable, 5-Pin Nexus Female Receptacle
Motorola PMKN4112

PMKN4112

Display RSM Interface Cable 4-Pin Nexus Male Plug
Motorola PMKN4113

PMKN4113

Display RSM Interface Cable, 12-Pin Hirose Male Connector
